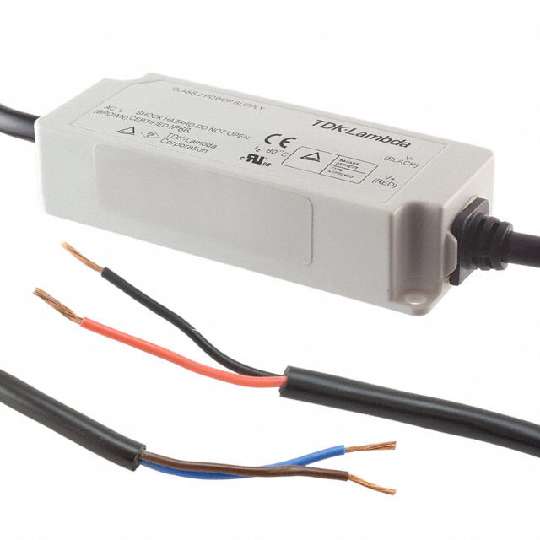

ALC1236R35

LED SUPPLY CC AC/DC 3-36V 350MA

Manufacturer TDK Corporation
MPN ALC1236R35
SPQ 20
ECCN --
Schedule B --
RoHS --
Datasheet --

Quote

Demand quantity Target price
Contact number name
company email

Product parameter

-Voltage - Isolation 3kV (3000V)
-Type Constant Current
-Ratings IP66
-Current - Output (Max) 350mA
-Termination Style Wire Leads
-Approvals CE, CSA, IEC, PSE, UL
-Size / Dimension 3.62" L x 1.36" W x 0.83" H (92.0mm x 34.5mm x 21.0mm)
-Weight 0.186 lb (84.37g)
-Series ALC12
-Family LED Supplies
-Mounting Type Chassis Mount
-Number of Outputs 1
-PCN Obsolescence/ EOL ALC and ALV Series 01/Aug/2013
-Topology AC DC Converter
-Standard Package   20
-Voltage - Output 3 ~ 36 V
-Features OVP, SCP
-Efficiency 82%
-Voltage - Input (Max) 264VAC
-Power (Watts) 13W
-Voltage - Input (Min) 90VAC
-Operating Temperature -10°C ~ 60°C
