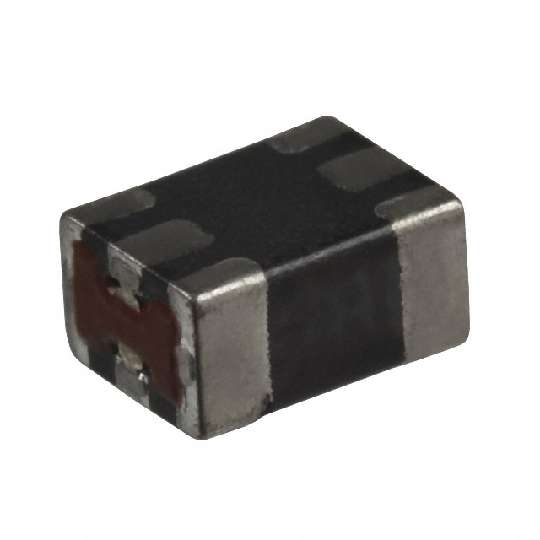

ACM4532-801-2P-T001

CHOKE COMMON MODE 800 OHM SMD

Manufacturer TDK Corporation MPN ACM4532-801-2P-T001 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Impedance	800 Ohm
-Number of Lines	2
-Catalog Drawings	(ACM4532,ACT45B)-xxx-2P_Top ACM4532-xxx-2P_Bottom ACM4532-xxx-2P_Side
-Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
-Series	ACM
-Height (Max)	0.091" (2.30mm)
-Filter Type	Power Line
-DC Resistance (DCR)	100 mOhm Max
-Package / Case	1812 (4532 Metric), 6 Lead
-Other Drawings	ACM3225 Series Schematic ACM4532-xxx-2P_Footprint
-Standard Package	1
-Packaging	Digi-Reel®
-Family	Common Mode Chokes
-Mounting Type	Surface Mount
-Operating Temperature	-25°C ~ 85°C
-Current	1A
