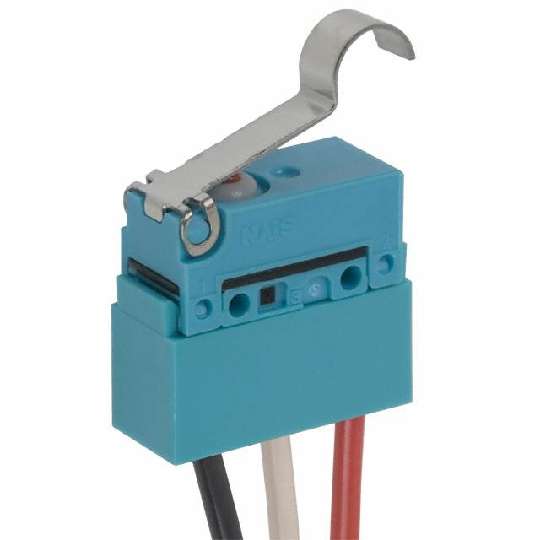

ABJ1614409

SWITCH SNAP ACTION SPDT 1A 125V

制造商 Panasonic 制造商零件编号 ABJ1614409 标准包装 50 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Release Force	3gf
-PCN Obsolescence/ EOL	ABJ x(6,7,8)xx Feb/2012
-Termination Style	Wire Leads
-Electrical Life	6,000 Cycles
-Operating Position	0.386" (9.8mm)
-Circuit	SPDT
-Differential Travel	0.020" (0.5mm)
-Pretravel	0.120" (3.0mm)
-Voltage Rating - AC	125V
-Packaging	Bulk
-Mechanical Life	1,000,000 Cycles
-Operating Temperature	-40°C ~ 85°C
-Current Rating	1A (AC/DC)
-Switch Function	On-Mom
-Ingress Protection	IP67 - Dust Tight, Waterproof
-Voltage Rating - DC	30V
-Other Related Documents	How to Read Date Codes
-Mounting Type	Chassis Mount
-Actuator Type	Lever, Simulated Roller
-Catalog Drawings	ABJ Series Roller Type
-Standard Package	50
-Operating Force, Torque	40gf
-Series	ABJ
-Family	Snap Action, Limit Switches
-Overtravel	0.020" (0.5mm)
