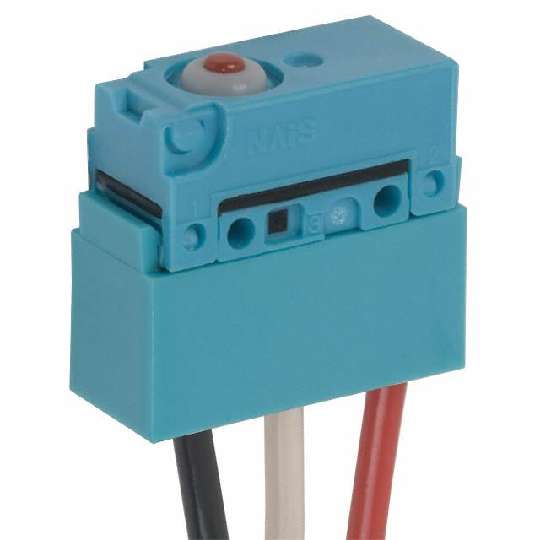

ABJ1610419

SWITCH SNAP ACT SPDT 100MA 125V

制造商 Panasonic 制造商零件编号 ABJ1610419 标准包装 50 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Release Force	15gf
-PCN Obsolescence/ EOL	ABJ x(6,7,8)xx Feb/2012
-Termination Style	Wire Leads
-Other Related Documents	How to Read Date Codes
-Mounting Type	Chassis Mount
-Actuator Type	Round (Pin Plunger)
-Catalog Drawings	ABJ Series Plunger Type
-Voltage Rating - AC	125V
-Packaging	Bulk
-Mechanical Life	1,000,000 Cycles
-Operating Temperature	-40°C ~ 85°C
-Current Rating	100mA (AC)
-Switch Function	On-Mom
-Ingress Protection	IP67 - Dust Tight, Waterproof
-Electrical Life	6,000 Cycles
-Operating Position	0.217" (5.5mm)
-Circuit	SPDT
-Differential Travel	0.005" (0.12mm)
-Pretravel	0.024" (0.6mm)
-Operating Force, Torque	125gf
-Series	ABJ
-Family	Snap Action, Limit Switches
-Overtravel	0.010" (0.25mm)
