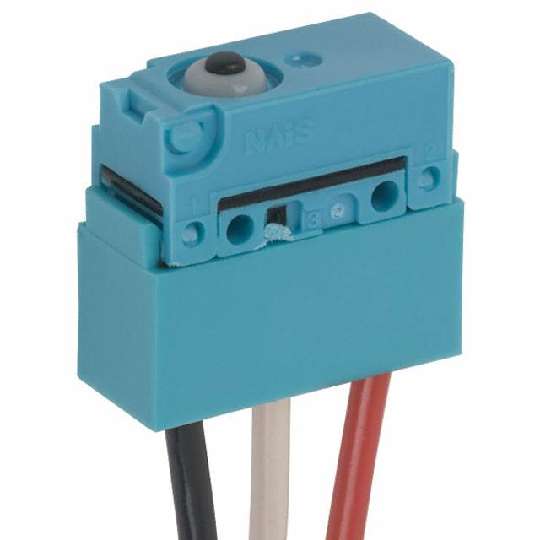

| -Release Force | 15gf |
| -PCN Obsolescence/ EOL | ABJ x(6,7,8)xx Feb/2012 |
| -Termination Style | Wire Leads |
| -Electrical Life | 6,000 Cycles |
| -Operating Position | 0.217" (5.5mm) |
| -Circuit | SPDT |
| -Differential Travel | 0.005" (0.12mm) |
| -Pretravel | 0.024" (0.6mm) |
| -Voltage Rating - AC | 125V |
| -Packaging | Bulk |
| -Mechanical Life | 1,000,000 Cycles |
| -Operating Temperature | -40掳C ~ 85掳C |
| -Current Rating | 1A (AC/DC) |
| -Switch Function | On-Mom |
| -Ingress Protection | IP67 - Dust Tight, Waterproof |
| -Voltage Rating - DC | 30V |
| -Other Related Documents | How to Read Date Codes |
| -Mounting Type | Chassis Mount |
| -Actuator Type | Round (Pin Plunger) |
| -Catalog Drawings | ABJ Series Plunger Type |
| -Standard Package | 50 |
| -Operating Force, Torque | 125gf |
| -Series | ABJ |
| -Family | Snap Action, Limit Switches |
| -Overtravel | 0.010" (0.25mm) |
