| -Termination |
Solder |
| -Termination Post Length |
0.122" (3.10mm) |
| -Contact Finish - Post |
Tin |
| -Contact Finish Thickness - Post |
160µin (4.06µm) |
| -Manufacturer |
Assmann WSW Components |
| -Contact Finish - Mating |
Tin |
| -Contact Material - Post |
Phosphor Bronze |
| -Contact Material - Mating |
Phosphor Bronze |
| -Family |
Sockets for ICs, Transistors |
| -Contact Resistance |
15 mOhm |
| -Material Flammability Rating |
UL94 V-0 |
| -Current Rating |
1A |
| -Pitch - Post |
0.050" (1.27mm) |

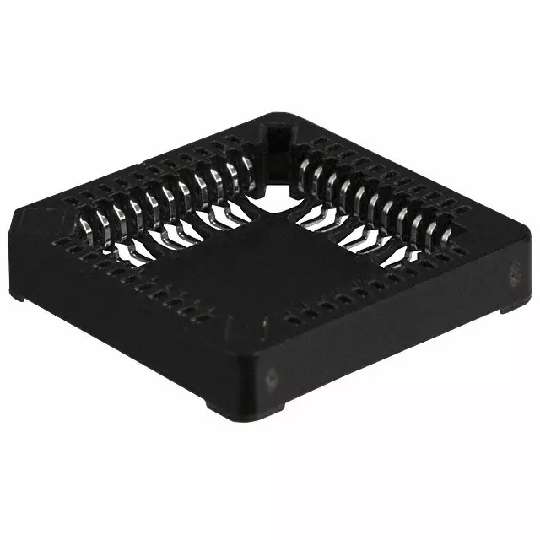

| -Type |
PLCC |
| -Part Status |
Active |
| -Number of Positions or Pins (Grid) |
44 (4 x 11) |
| -Category |
Connectors, Interconnects |
| -Housing Material |
Polyamide (PA9T), Nylon 9T, Glass Filled |
| -Contact Finish Thickness - Mating |
160µin (4.06µm) |
| -Pitch - Mating |
0.050" (1.27mm) |
| -Mounting Type |
Surface Mount |
| -Operating Temperature |
-40°C ~ 105°C |
| -Packaging |
Tube |
| -ECCN |
EAR99 |
