94763

TERM RING INSUL 4AWG #3/8

Manufacturer 3M MPN 94763 SPQ 100 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Termination	Crimp
-Contact Finish	Tin
-Thickness	0.075" (1.91mm)
-Standard Package	100
-Color	Yellow
-Packaging	Bulk
-Contact Material	Copper, ETP
-Length - Overall	1.740" (44.20mm)
-Family	Terminals - Ring Connectors
-Mounting Type	Free Hanging (In-Line)
-Material - Insulation	Polyamide (PA), Nylon

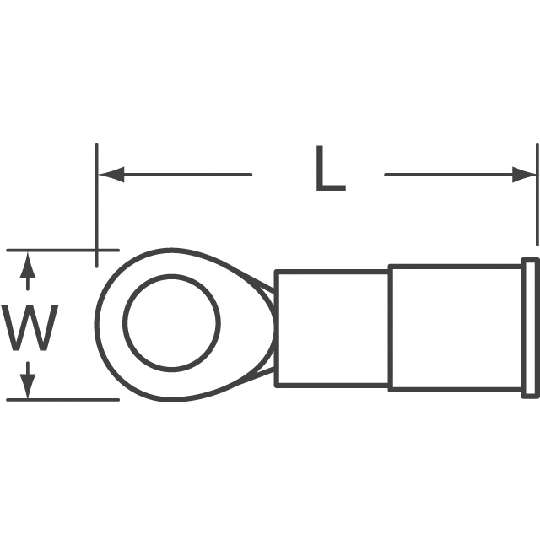

-Catalog Drawings	Ring Tongue
-Terminal Type	Circular
-Stud/Tab Size	3/8 Stud
-Features	Brazed Seam
-Insulation Diameter	0.515" (13.08mm)
-Insulation	Insulated
-Series	Highland™
-Wire Gauge	4 AWG
-Width - Outer Edges	0.680" (17.27mm)
