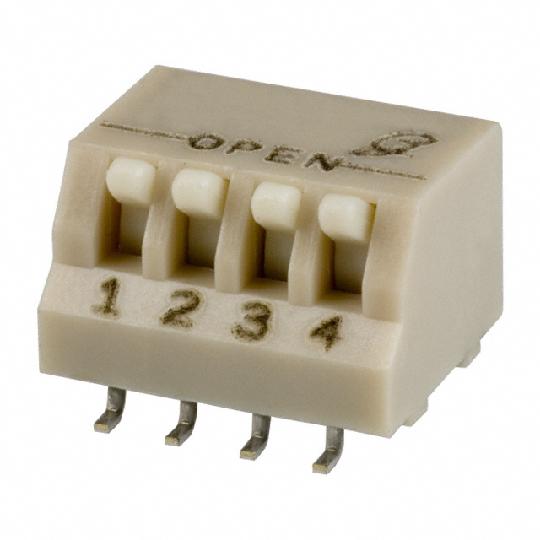

76HPSB04GWR

SWITCH DIP PIANO STYLE 4POS SMD

制造商 Grayhill, Inc. 制造商零件编号 76HPSB04GWR 标准包装 62 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Voltage Rating	30VDC
-Termination Style	Gull Wing
-Electrical Life	2,000 Cycles
-Mounting Type	Surface Mount, Right Angle
-Circuit	SPST
-Standard Package	1
-Contact Material	Copper Alloy
-Length	0.480" (12.19mm)
-Number of Positions	4
-Family	DIP Switches
-Current Rating	150mA
-Contact Finish	Gold
-Body Material	Thermoplastic
-Washable	No
-Height Above Board	0.337" (8.56mm)
-Actuator Type	Piano
-Packaging	Cut Tape (CT)
-Actuator Level	Raised
-Mechanical Life	2,000 Cycles
-Series	76HP
-Operating Temperature	-40°C ~ 85°C
-Pitch	0.100" (2.54mm), Full
