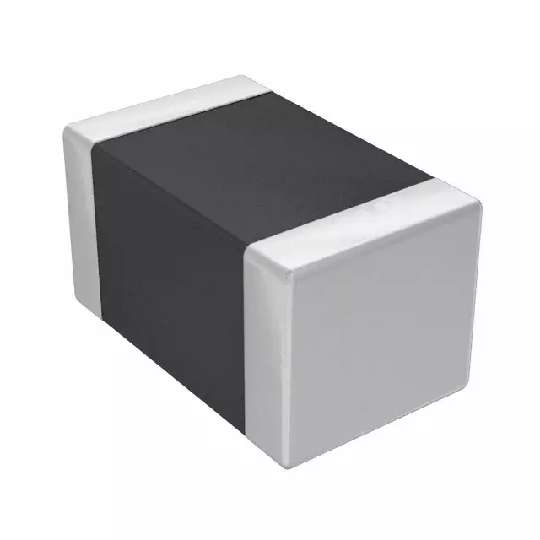

| -Package / Case | 0805 (2012 Metric) |
| -Catalog Drawings | WE-CBF Series_0805 Side WE-CBF Series_0805 Top |
| -Impedance @ Frequency | 56 Ohm @ 100MHz |
| -Packaging | Cut Tape (CT) |
| -Series | WE-CBF |
| -Mounting Type | Surface Mount |
| -Filter Type | Differential Mode - Single |
| -DC Resistance (DCR) | 300 mOhm Max |
| -Kits | 732-1644-ND - KIT DESIGN FERRITE CHIP BEAD |
| -Standard Package | 1 |
| -Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| -Design Resources | Spice Model Library |
| -Family | Ferrite Beads and Chips |
| -Height (Max) | 0.043" (1.10mm) |
| -3D Model | CBF 0805.igs CBF 0805.stp CBF 0805.wrl |
| -Current Rating | 300mA |
