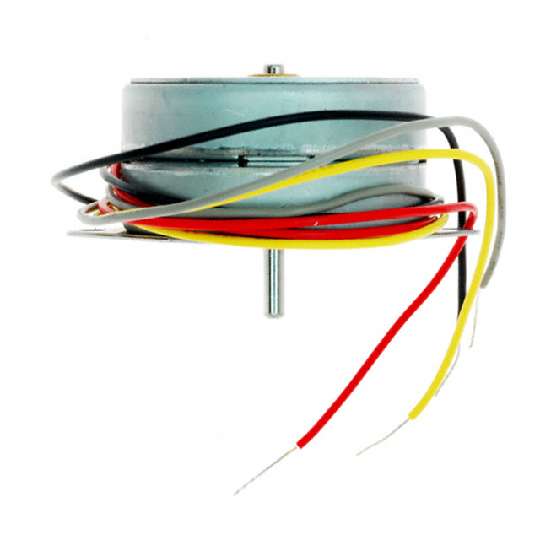

42M048C1B

STEPPER MOTOR 5VDC 7.5DEG BI

制造商 Portescap 制造商零件编号 42M048C1B 标准包装 100 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Steps per Revolution	48
-Mounting Hole Spacing	1.95" (49.48mm)
-Step Angle	7.5°
-Diameter - Shaft	0.118" (3.00mm)
-Coil Type	Bipolar
-Diameter - Body	1.65" (42.00mm)
-Voltage - Rated	5VDC
-Series	42M
-Length - Shaft and Bearing	0.450" (11.43mm)
-Type	Standard
-Catalog Drawings	42L,42M,42S Series
-Standard Package	100
-Length - Lead Wire	12.00" (304.80mm)
-Product Training Modules	Stepper Fundamentals
-Weight	0.319 lb (144.7g)
-Online Catalog	42M Series
-Family	Stepper Motors
-Torque - Holding (oz-in / mNm)	11.9 / 84
