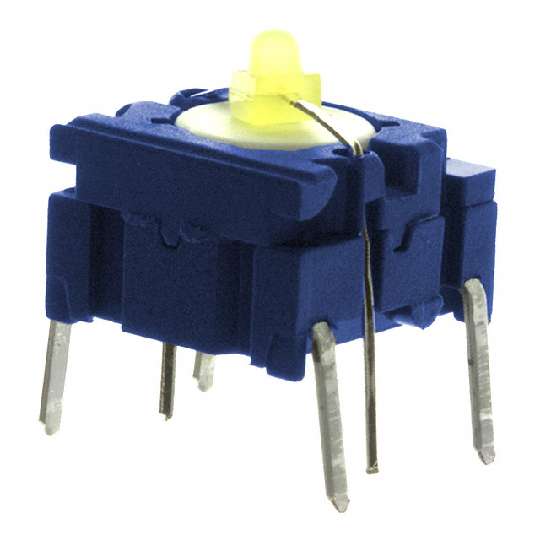

| -Illumination Voltage (Nominal) |
2.1 VDC |
| -Actuator Orientation |
Top Actuated |
| -Actuator Height off PCB, from Pins |
6.40mm |
| -Termination Style |
PC Pin |
| -Illumination Type, Color |
LED, Yellow |
| -Mounting Type |
Through Hole |
| -Circuit |
SPST-NO |
| -Contact Rating @ Voltage |
0.05A @ 24VDC |
| -Features |
Sealed - Flux Protection |
| -Illumination |
Illuminated |
| -Series |
Multimec® |
| -Family |
Tactile Switches |
| -Operating Temperature |
-40°C ~ 115°C |
| -Switch Function |
Off-Mom |
| -PCN Obsolescence/ EOL |
3ATL6y0 04/Mar/2014 |
| -Ingress Protection |
IP67 - Dust Tight, Waterproof |
| -Product Training Modules |
Switches |
| -Operating Force |
300gf |
| -Actuator Material |
Polybutylene Terephthalate (PBT) |
| -Actuator Type |
Plunger for Cap |
| -Standard Package |
50 |
| -Packaging |
Tube |
| -Switch Travel |
1.00mm |
| -Mechanical Life |
10,000,000 Cycles |
| -Outline |
10.10mm x 10.10mm |
