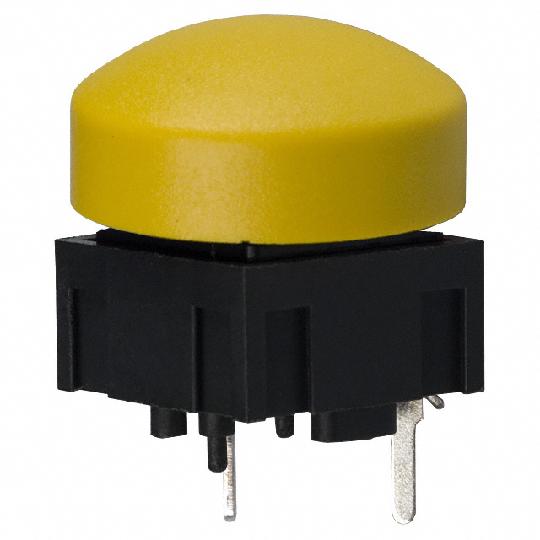

| -Circuit | SPST-NO |
| -Switch Function | Off-Mom |
| -Contact Rating @ Voltage | 0.025A @ 50VDC |
| -Standard Package | 1 |
| -Features | Yellow Cap |
| -Illumination | Non-Illuminated |
| -Series | 320 |
| -Mechanical Life | 1,000,000 Cycles |
| -Outline | 12.40mm x 12.40mm |
| -Operating Temperature | -20°C ~ 70°C |
| -Actuator Material | Polycarbonate (PC) |
| -Actuator Type | Round Button |
| -Actuator Orientation | Top Actuated |
| -Actuator Height off PCB, from Pins | 15.70mm |
| -Termination Style | PC Pin |
| -Packaging | Bulk |
| -Switch Travel | 0.60mm |
| -Operating Force | 135gf |
| -Family | Tactile Switches |
| -Mounting Type | Through Hole |
| -3D Model | 320.09E11yyy.stp |
| -ECCN | EAR99 |
