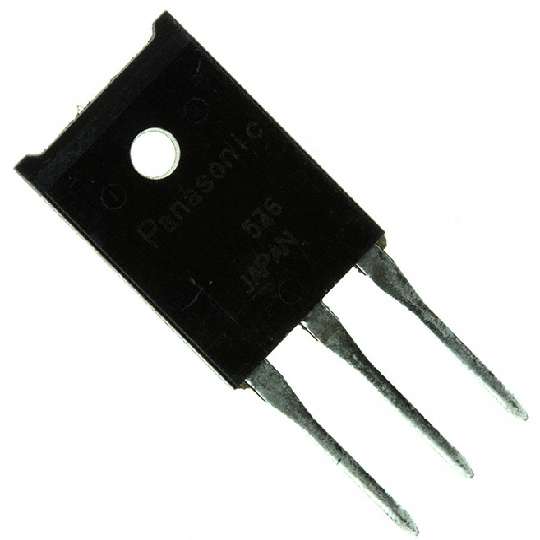

2SK3318

MOSFET N-CH 600V 15A TOP-3F

Manufacturer Panasonic MPN 2SK3318 SPQ 40 ECCN -- Schedule B -- RoHS -- Datasheet --

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-FET Feature	Standard
-Package / Case	TOP-3F
-Drain to Source Voltage (Vdss)	600V
-Current - Continuous Drain (Id) @ 25°C	15A (Tc)
-Packaging	Bulk
-Family	FETs - Single
-Mounting Type	Through Hole
-Rds On (Max) @ Id, Vgs	460 mOhm @ 7.5A, 10V
-Power - Max	100W
-Supplier Device Package	TOP-3F-A1
-Standard Package	40
-FET Type	MOSFET N-Channel, Metal Oxide
-Vgs(th) (Max) @ Id	4V @ 1mA
-Input Capacitance (Ciss) @ Vds	3500pF @ 20V
