| -Vce Saturation (Max) @ Ib, Ic |
600mV @ 30mA, 300mA |
| -Package / Case |
NS-B1 |
| -Transistor Type |
PNP |

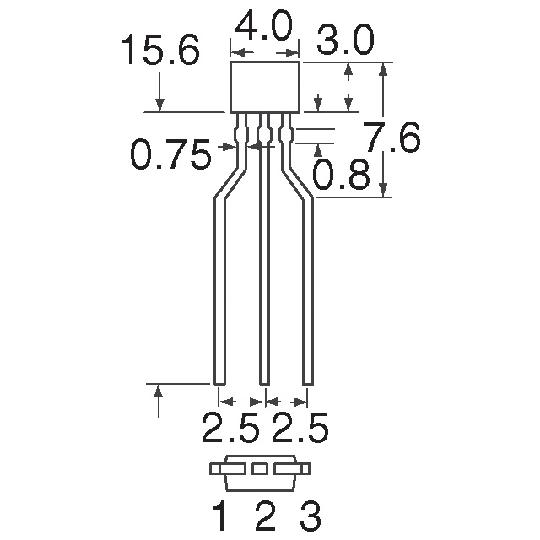

| -Catalog Drawings |
S Type, NS-B1 Side 1, Bottom S Type, NS-B1 Side 2 |
| -Current - Collector (Ic) (Max) |
500mA |
| -Voltage - Collector Emitter Breakdown (Max) |
50V |
| -Mounting Type |
Through Hole |
| -DC Current Gain (hFE) (Min) @ Ic, Vce |
120 @ 150mA, 10V |
| -Frequency - Transition |
120MHz |
| -Power - Max |
300mW |
| -Supplier Device Package |
NS-B1 |
| -Standard Package |
1 |
| -Packaging |
Cut Tape (CT) |
| -Family |
Transistors (BJT) - Single |
| -Current - Collector Cutoff (Max) |
1µA |
