EVM-3YSX50B55

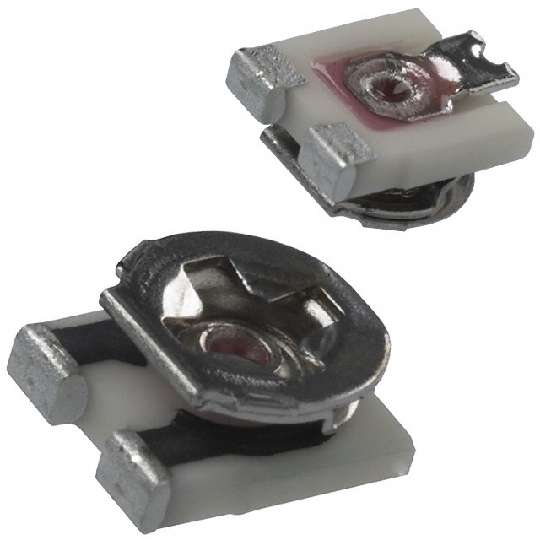

TRIMMER 500KOHM 0.15W J LEAD TOP

制造商 Panasonic 制造商零件编号 EVM-3YSX50B55 标准包装 2000 ECCN -- Schedule B -- RoHS RoHS Compliant 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Tolerance	±25%
-Number of Turns	Single
-Termination Style	J Lead
-Adjustment Type	Top Adjustment
-Resistance (Ohms)	500k
-Family	Trimmer Potentiometers
-Mounting Type	Surface Mount
-Packaging	Cut Tape (CT)
-Temperature Coefficient	±250ppm/°C
-Catalog Drawings	P3Y Series Circuit P3Y Series Top P3Y Series Bottom P3Y Series Side P3Y Series Footprint
-Size / Dimension	Rectangular - 0.136" x 0.122" Face x 0.061" H (3.45mm x 3.10mm x 1.55mm)
-Online Catalog	EVM-3Y 3R Series
-Series	EVM
-Power (Watts)	0.15W
-Resistive Material	Cermet
-RoHS	Lead free / RoHS Compliant
