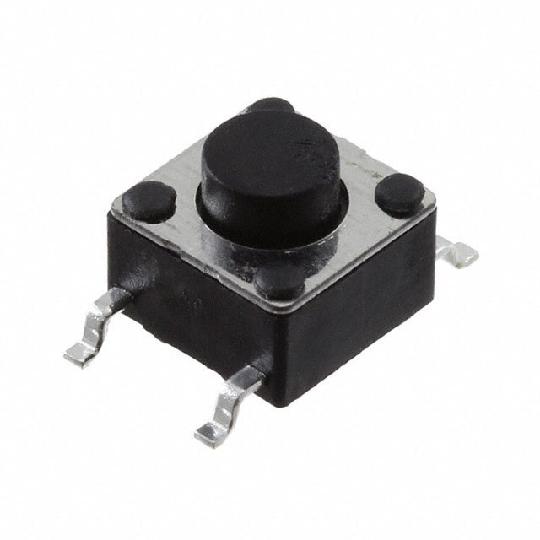

1301.9315

Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N

Manufacturer Schurter Electronic Componets MPN 1301.9315 SPQ 1 ECCN -- Schedule B -- RoHS -- Datasheet --

SP1027 Dollar $0.48174 RMB ￥4.00116 Stock type SP1027 Stock num 2630 Stepped num price 230+ $0.48174

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Circuit	SPST-NO
-Switch Function	Off-Mom
-Contact Rating @ Voltage	0.05A @ 12VDC
-Ingress Protection	IP40
-Termination Style	Gull Wing
-Packaging	Bulk
-Switch Travel	0.25mm
-Operating Force	160gf
-Family	Tactile Switches
-Mounting Type	Surface Mount
-Operating Temperature	-20°C ~ 70°C
-Actuator Type	Standard
-Actuator Orientation	Top Actuated
-Actuator Height off PCB, from Pins	5.00mm
-Standard Package	2,000
-Features	Tactile Feedback
-Illumination	Non-Illuminated
-Series	LSH
-Mechanical Life	100,000 Cycles
-Outline	6.00mm x 6.00mm
-RoHS Information	RoHS, Switch Line Products
