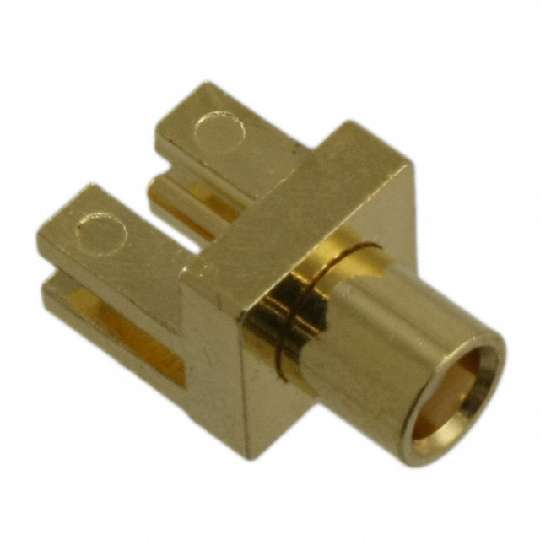

1261E504

MCX micro miniature RF connectors with snap-on couplings

制造商 Winchester Electronics 制造商零件编号 1261E504 标准包装 100 ECCN EAR99 Schedule B -- RoHS -- 规格说明书 --

SP1027库存 美元价格 $38.28175 人民币价格 ￥317.95473 库存类型 SP1027 库存数量 600 阶梯价格 数量 价格 3+ $38.28175 10+ $19.10251 25+ $9.207 50+ $9.09974

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Voltage Rating	500V
-Connector Style	MCX
-Contact Termination	Solder
-Center Contact Plating	Gold
-Body Finish	Gold
-Packaging	Tray
-Housing Color	Gold
-Dielectric Material	Polytetrafluoroethylene (PTFE)
-Category	Connectors, Interconnects
-Family	Coaxial Connectors (RF)
-Connector Type	Jack, Female Socket
-Impedance	50 Ohm
-Shield Termination	Solder
-Body Material	Brass
-Manufacturer	Winchester Electronics
-Mounting Type	Board Edge, End Launch
-Fastening Type	Snap-On
-Frequency - Max	6GHz
-Part Status	Active
-Series	E-Snap™
-Operating Temperature	-40°C ~ 65°C
-ECCN	EAR99
