| -Tooling | 69874-ND - TOOL DIE PIDG 69875 12-10AWG 69897-ND - DIE PIDG LG EXP 69875 12-10AWG |
| -Material - Insulation | Polyamide (PA), Nylon |
| -Thickness | 0.048" (1.22mm) |
| -Standard Package | 10,000 |
| -Color | Yellow, Black Stripe |
| -Packaging | Tape & Reel (TR) |
| -Contact Material | Copper |
| -Length - Overall | 1.296" (32.92mm) |

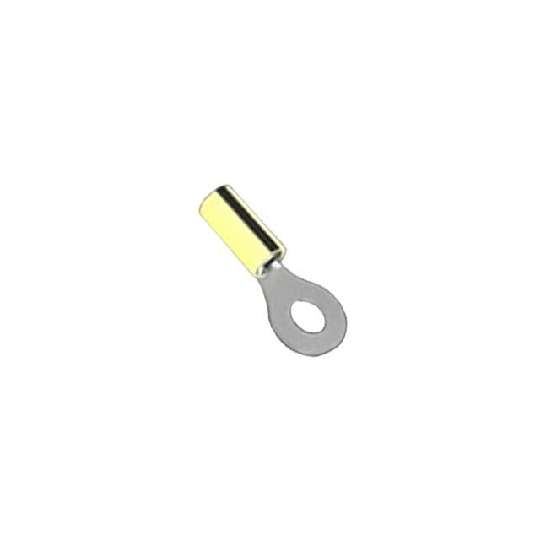

| -Family | Terminals - Ring Connectors |
| -Mounting Type | Free Hanging (In-Line) |
| -3D Model | 1-327743-1.pdf |
| -Termination | Crimp |
| -Contact Finish | Tin |
| -Terminal Type | Circular |
| -Stud/Tab Size | 1/4 Stud |
| -Features | Heavy Duty, Serrated Termination |
| -Insulation Diameter | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) |
| -Insulation | Insulated |
| -Series | PIDG, AMP |
| -Wire Gauge | 14-16 AWG |
| -RoHS Information | 1-327743-1 Statement of Compliance RoHS 2 Statement |
| -Width - Outer Edges | 0.531" (13.49mm) |
