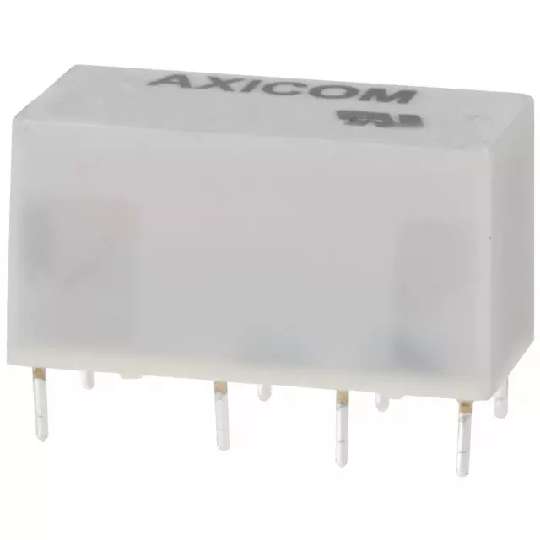

1-1393793-4

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

制造商 TE Connectivity 制造商零件编号 1-1393793-4 标准包装 1 ECCN -- Schedule B -- RoHS -- 规格说明书 --

询价

需求数量		目标价格
联系电话		姓名
公司		邮箱

产品参数

-Contact Form	DPDT (2 Form C)
-Termination Style	PC Pin
-Switching Voltage	250VAC, 220VDC - Max
-Coil Voltage	24VDC
-Contact Rating (Current)	3A
-Operate Time	6ms
-Coil Current	23mA
-Contact Material	Silver Nickel (AgNi)
-Relay Type	Telecom
-Family	Power Relays, Over 2 Amps
-Coil Power	550 mW
-Coil Type	Non Latching
-Coil Resistance	1.05 kOhms
-Mounting Type	Through Hole
-Standard Package	25
-Packaging	Tube
-Release Time	4ms
-Online Catalog	V23105, AXICOM Series
-Series	V23105, AXICOM
-Operating Temperature	-40°C ~ 85°C
