| -Length - Termination |
0.550" (13.97mm) |
| -Material - Insulation |
Poly-Vinyl Chloride (PVC) |
| -Length - Ring Center to Termination |
0.261" (6.63mm) |
| -Mounting Type |
Free Hanging (In-Line) |
| -Termination |
Crimp |
| -Standard Package |
500 |
| -Stud/Tab Size |
8 Stud |
| -Packaging |
Bulk |
| -Contact Material |
Copper |
| -Insulation |
Insulated |
| -Family |

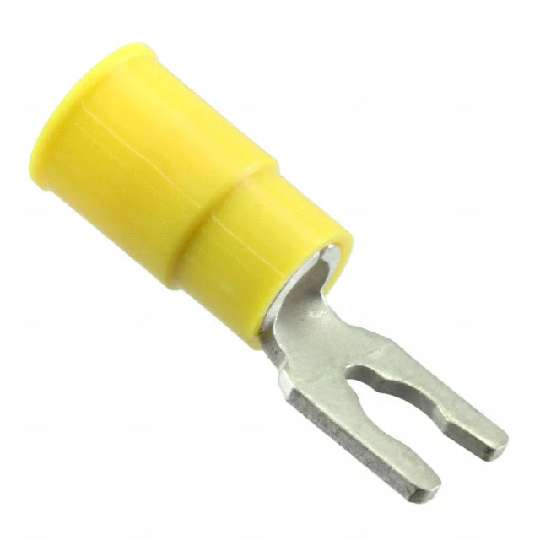

Terminals - Spade Connectors |
| -Width - Outer Edges |
0.310" (7.87mm) |
| -Kits |
70-841-029-ND - LPS360-M CONNECTOR KIT |
| -Contact Finish |
Electro-Tin |
| -Wire Gauge |
10-12 AWG |
| -Tooling |
WM9952-ND - TOOL CRIMP TERM&SPLICE 10-22AWG WM6546-ND - TOOL HEAD ASSY FOR 19279-0001 WM1620-ND - TOOL HAND CRIMP 10-22 AWG 0640050300-ND - AT-1993 CRIMP TOOL HEAD 0640051500-ND - AT-2200 CRIMP TOOL HEAD |
| -Tongue Inside Opening |
0.139" (3.53mm) |
| -Terminal Type |
Spring, Snap |
| -Color |
Yellow |
| -Insulation Diameter |
0.250" (6.35mm) |
| -Length - Overall |
1.016" (25.80mm) |
| -Series |
InsulKrimp™ |
| -RoHS Information |
190990048 Cert of Compliance |
