BPV23F

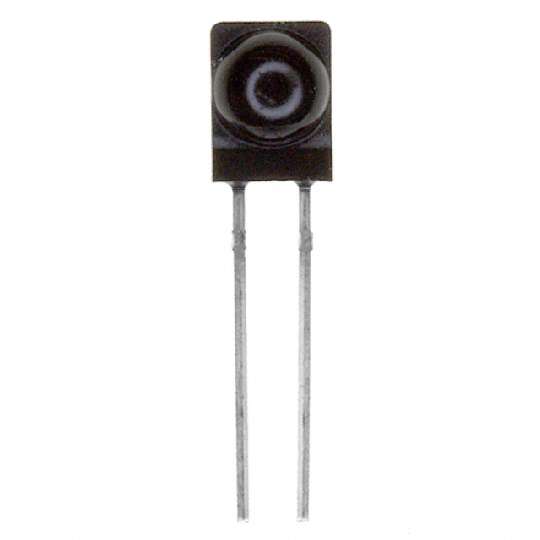

950 nm 60 V 120° Viewing Angle Radial Through Hole Silicon PIN Photodiode

Manufacturer Vishay MPN BPV23F SPQ 1 ECCN EAR99 Schedule B -- RoHS -- Datasheet BPV23F.pdf

SP1027 Dollar $0.55878 RMB ￥4.64103 Stock type SP1027 Stock num 3042 Stepped num price 1+ $0.55878 25+ $0.55041 100+ $0.50561 SP1034 Dollar $1.88531 RMB ￥15.65872 Stock type SP1034 Stock num 160 Stepped num price 5+ $1.88531 SP1034 Dollar $1.94464 RMB ￥16.1515 Stock type SP1034 Stock num 3676 Stepped num price 1+ $1.94464 50+ $1.89108 100+ $1.79632 250+ $1.66448 500+ $1.52028 SP1034 Dollar $1.30892 RMB ￥10.87143 Stock type SP1034 Stock num 3676 Stepped num price 1000+ $1.30892 4000+ $1.28297 8000+ $1.25742 SP1034 Dollar $1.89108 RMB ￥15.70664 Stock type SP1034 Stock num 3676 Stepped num price 50+ $1.89108 100+ $1.79632 250+ $1.66448 500+ $1.52028

Quote

Demand quantity		Target price
Contact number		name
company		email

Product parameter

-Viewing Angle	120°
-Part Status	Active
-Spectral Range	870nm ~ 1050nm
-Manufacturer	Vishay Semiconductor Opto Division
-Family	Optical Sensors - Photodiodes
-Wavelength	950nm
-Operating Temperature	-40°C ~ 100°C
-Packaging	Bulk
-Package / Case	Radial, Side View
-Diode Type	PIN
-Category	Sensors, Transducers
-Current - Dark (Typ)	2nA
-Mounting Type	Through Hole
-Voltage - DC Reverse (Vr) (Max)	60V
-Active Area	4.4mm²
-ECCN	EAR99
