| -FET Feature |
Logic Level Gate, 1.8V Drive |

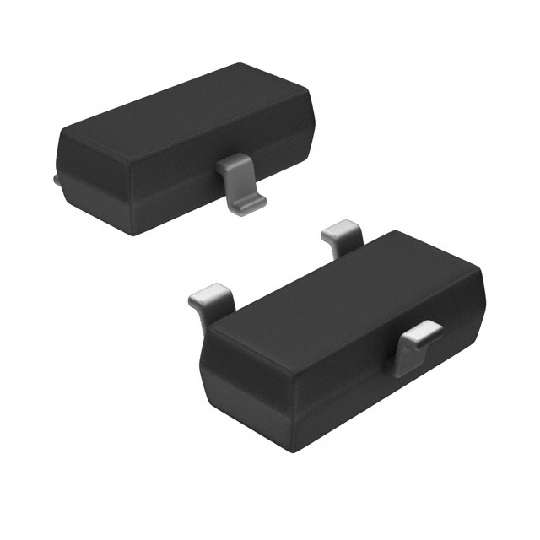

| -Package / Case |
SC-70, SOT-323 |
| -Drain to Source Voltage (Vdss) |
20V |
| -Current - Continuous Drain (Id) @ 25°C |
1.2A (Ta) |
| -Standard Package |
1 |
| -Packaging |
Digi-Reel® |
| -FET Type |
MOSFET P-Channel, Metal Oxide |
| -Vgs(th) (Max) @ Id |
1V @ 250µA |
| -Input Capacitance (Ciss) @ Vds |
540pF @ 10V |
| -Rds On (Max) @ Id, Vgs |
135 mOhm @ 1.2A, 4.5V |
| -Power - Max |
630mW |
| -Supplier Device Package |
SC-70-3 |
| -Other Drawings |
AO7xxx Series SC70-3 Top AO7xxx Series SC70-3 End AO7xxx Series SC70-3 Side |
| -Gate Charge (Qg) @ Vgs |
6.2nC @ 4.5V |
| -Other Related Documents |
AOS Green Policy |
| -Family |
FETs - Single |
| -Mounting Type |
Surface Mount |
