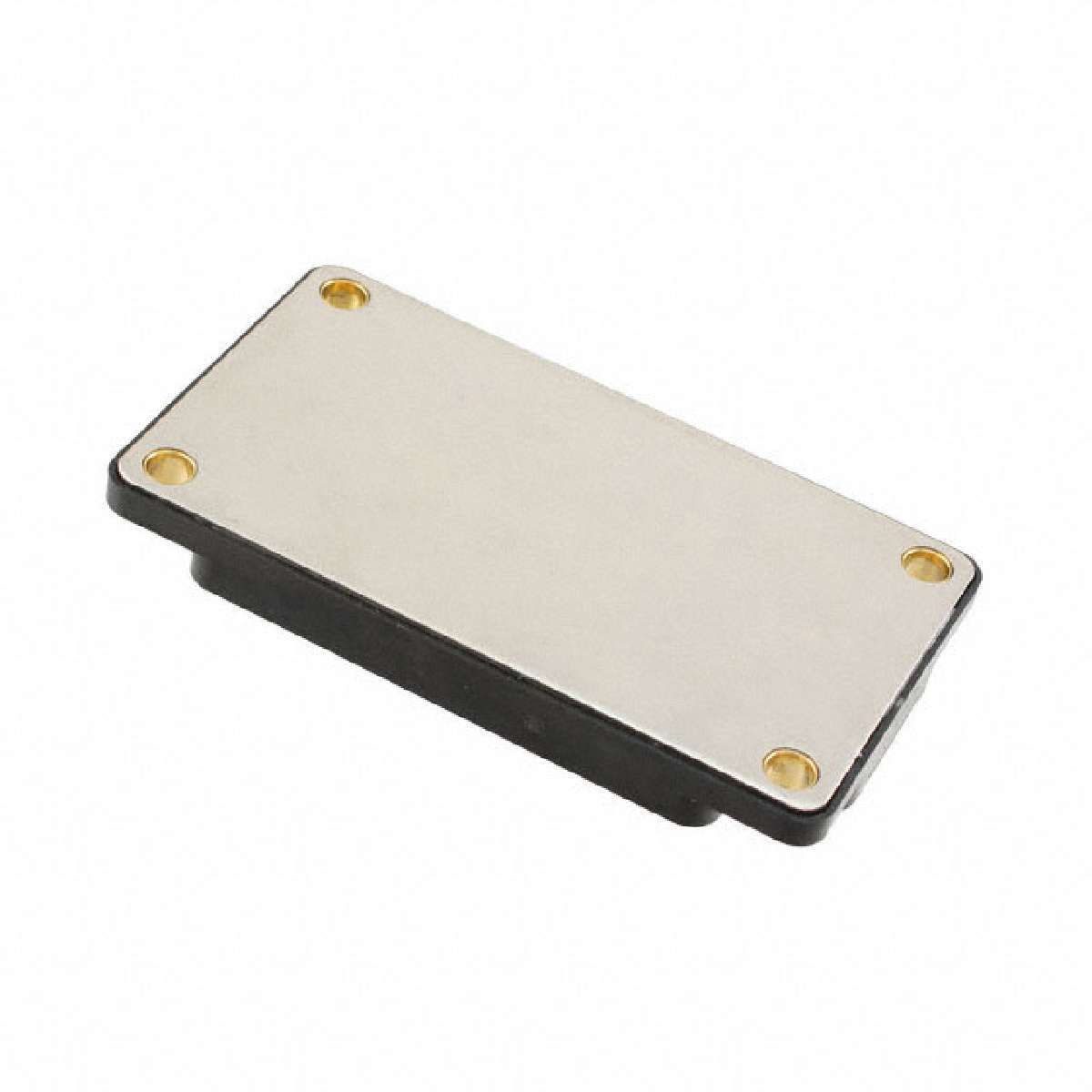

| APTM120TDU57PG | ||
|---|---|---|
|
|
||
|
||
| Product description : MOSFET 6N-CH 1200V 17A SP6-P | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| FET Feature | Standard |
|---|---|
| Package / Case | SP6 |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) |
| Current - Continuous Drain (Id) @ 25°C | 17A |
| Gate Charge (Qg) @ Vgs | 187nC @ 10V |
| FET Type | 6 N-Channel (3-Phase Bridge) |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Input Capacitance (Ciss) @ Vds | 5155pF @ 25V |
| Rds On (Max) @ Id, Vgs | 684 mOhm @ 8.5A, 10V |
| Power - Max | 390W |
| Supplier Device Package | SP6-P |
| Standard Package | 1 |
| Packaging | Bulk |
| Family | FETs - Modules |
| Mounting Type | Chassis Mount |
