| 160337-2 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

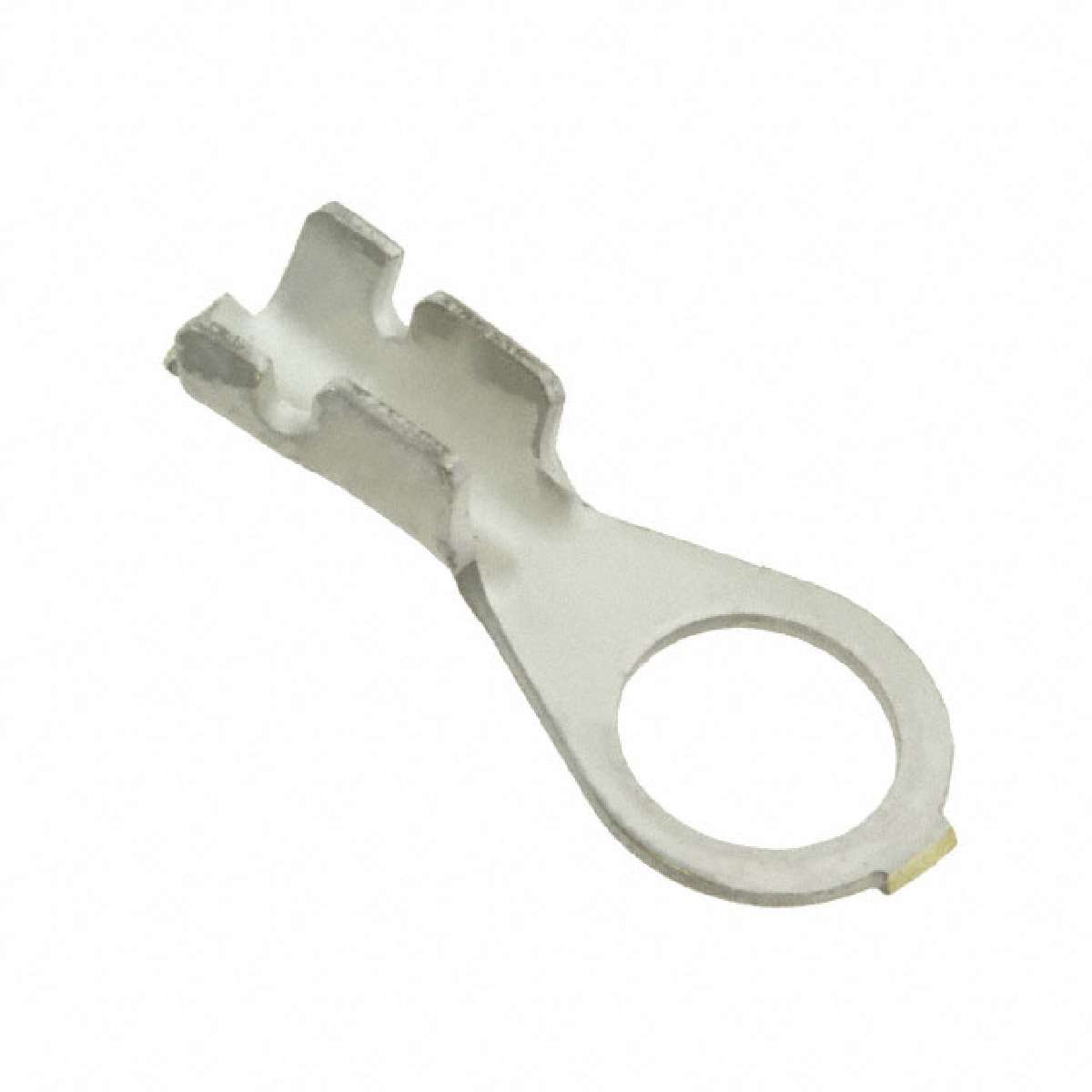

TE Connectivity 非绝缘镀锡触点 环形压接端子, M6 螺栓, 18 至 14 AWG
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Crimp |
|---|---|
| Thickness | 0.031" (0.79mm) |
| Standard Package | 18,000 |
| Packaging | Reel |
| Contact Material | Brass |
| Length - Overall | 0.783" (19.89mm) |
| Family | Terminals - Ring Connectors |
| Mounting Type | Free Hanging (In-Line) |
| 3D Model | 160337-2.pdf |
| Contact Finish | Tin |
| Terminal Type | Circular |
| Stud/Tab Size | M6 Stud |
| Insulation Diameter | 0.098" ~ 0.118" (2.50mm ~ 3.00mm) |
| Insulation | Non-Insulated |
| Series | AMP |
| Wire Gauge | 14-18 AWG |
| RoHS Information | 160337-2 Statement of Compliance RoHS 2 Statement |
| Width - Outer Edges | 0.343" (8.71mm) |
