| 154718-7 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

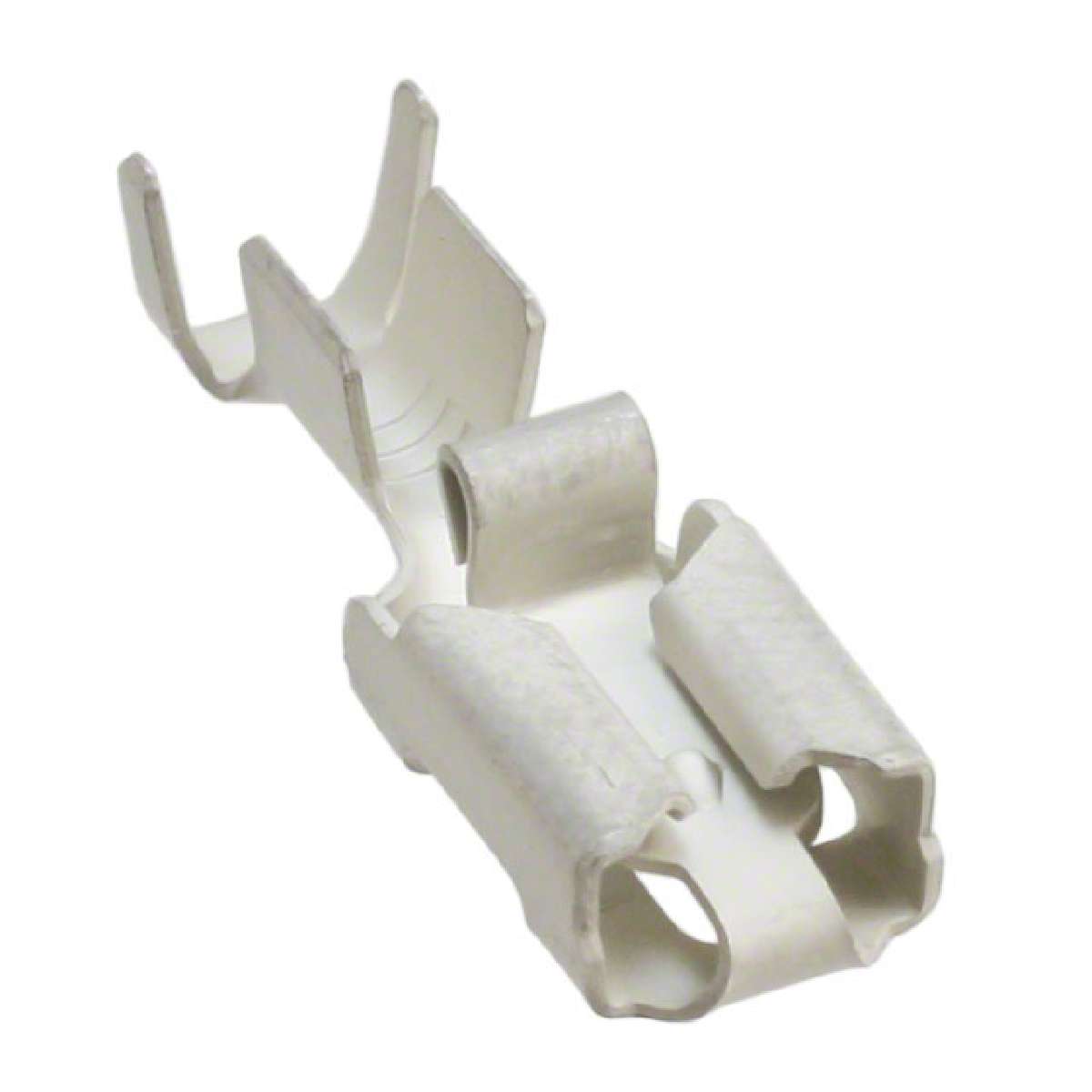

Connector Quick Connect Receptacle 14-18 AWG 0.250" (6.35mm) Crimp
|
||
| 标准包装：6000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Contact Finish | Tin |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Tab Width | 0.250" (6.35mm) |
| Standard Package | 1 |
| Packaging | Cut Tape (CT) |
| Contact Material | Phosphor Bronze |
| Length - Overall | 0.886" (22.50mm) |
| Series | Mark I, AMP |
| Family | Terminals - Quick Connects, Quick Disconnect Connectors |
| 3D Model | 154718-7.pdf |
| Wire Gauge | 14-18 AWG |
| Termination | Crimp |
| For Use With | 343526-1-ND - CONN RECEPT 1CIR POSTIVE LOCK A24749-ND - CONN RECEPT POS LOCK MRK I .250 A99649-ND - CONN RCPT HOUSING 1POS STR .250 A106952-ND - CONN POSITIVE LOCK RCPT 5POS 1-926522-1-ND - 02P.POS-LOCK HSG. A114642-ND - CONN RCPT 2POS W/POSITIVE LOCK 15 |
| Terminal Type | Standard |
| Insulation Diameter | 0.094" ~ 0.126" (2.39mm ~ 3.20mm) |
| Insulation | Non-Insulated |
| Gender | Female |
| Tab Thickness | 0.032" (0.81mm) |
| RoHS Information | 154718-7 Statement of Compliance RoHS 2 Statement |
| ECCN | EAR99 |
