| EXB-38V221JV | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

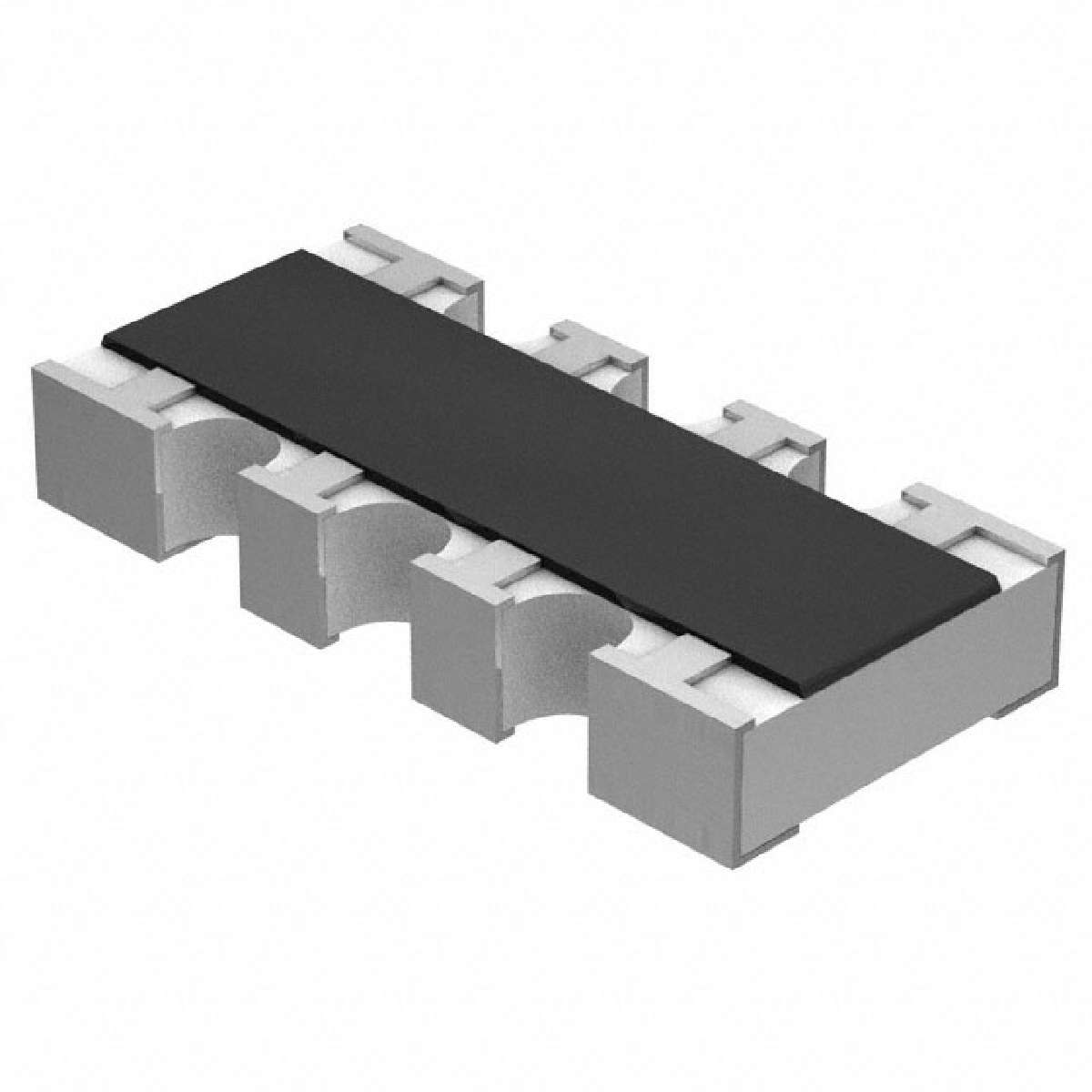

EXB-38V Series 0603 0.063 W 220 Ohm ±5 % 4 Element SMT Chip Resistor Array
|
||
| 标准包装：5000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals |
|---|---|
| Circuit Type | Isolated |
| Temperature Coefficient | ±200ppm/°C |
| Height | 0.024" (0.60mm) |
| Part Status | Active |
| Manufacturer | Panasonic Electronic Components |
| Number of Resistors | 4 |
| Series | EXB |
| Applications | Automotive AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| ECCN | EAR99 |
| Power Per Element | 62.5mW |
| Tolerance | ±5% |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Category | Resistors |
| Number of Pins | 8 |
| Resistance (Ohms) | 220 |
| Family | Resistor Networks, Arrays |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.03767
￥0.312870017082579
| 5000+ | $0.03767 |
|---|---|
| 10000+ | $0.03612 |
| 20000+ | $0.03395 |
| stock | 50000 | Update On 2022-12-01 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 5000/5000 | |
| Location | -- | |
| DateCode | 2204 |
