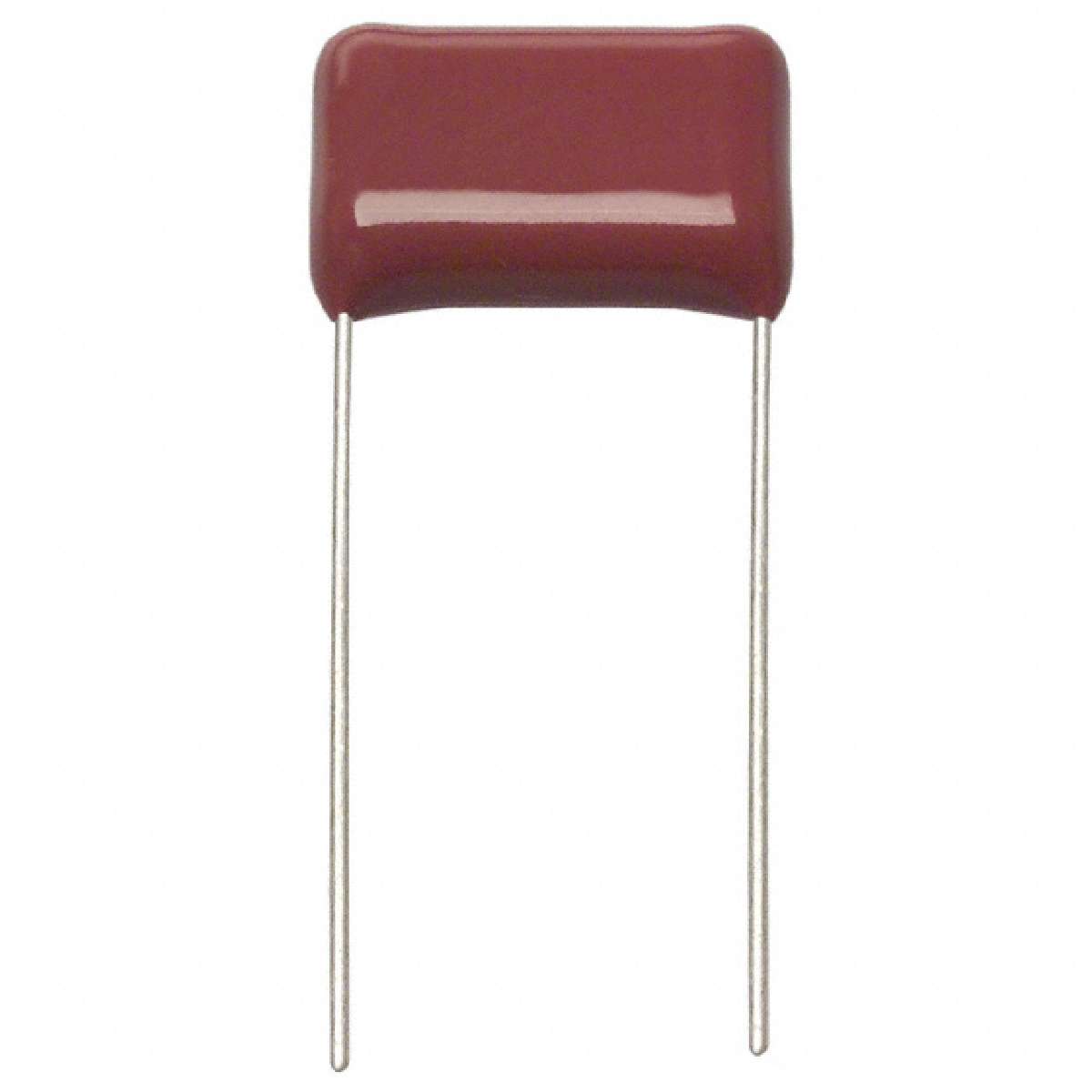

ECW-H12222JV
  • ACTIVE
  • Radial
Product description : CAP FILM 2200PF 5% 1.25KVDC RAD
SPQ:1000
Datasheet : --
ECAD Model:
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Termination PC Pins
Package / Case Radial
Catalog Drawings ECWH(V) Series Side 1 ECWH(V) Series Side 2
Voltage Rating - DC 1250V (1.25kV)
Size / Dimension 0.709" L x 0.256" W (18.00mm x 6.50mm)
Height - Seated (Max) 0.591" (15.00mm)
Family Film Capacitors
Mounting Type Through Hole
Packaging Bulk
Tolerance ±5%
Lead Spacing 0.591" (15.00mm)
Capacitance 2200pF
Dielectric Material Polypropylene (PP), Metallized
Online Catalog ECW-H(V) Series
Series ECW-H(V)
Applications High Frequency, Switching
Operating Temperature -40°C ~ 105°C
RoHS Lead free / RoHS Compliant
