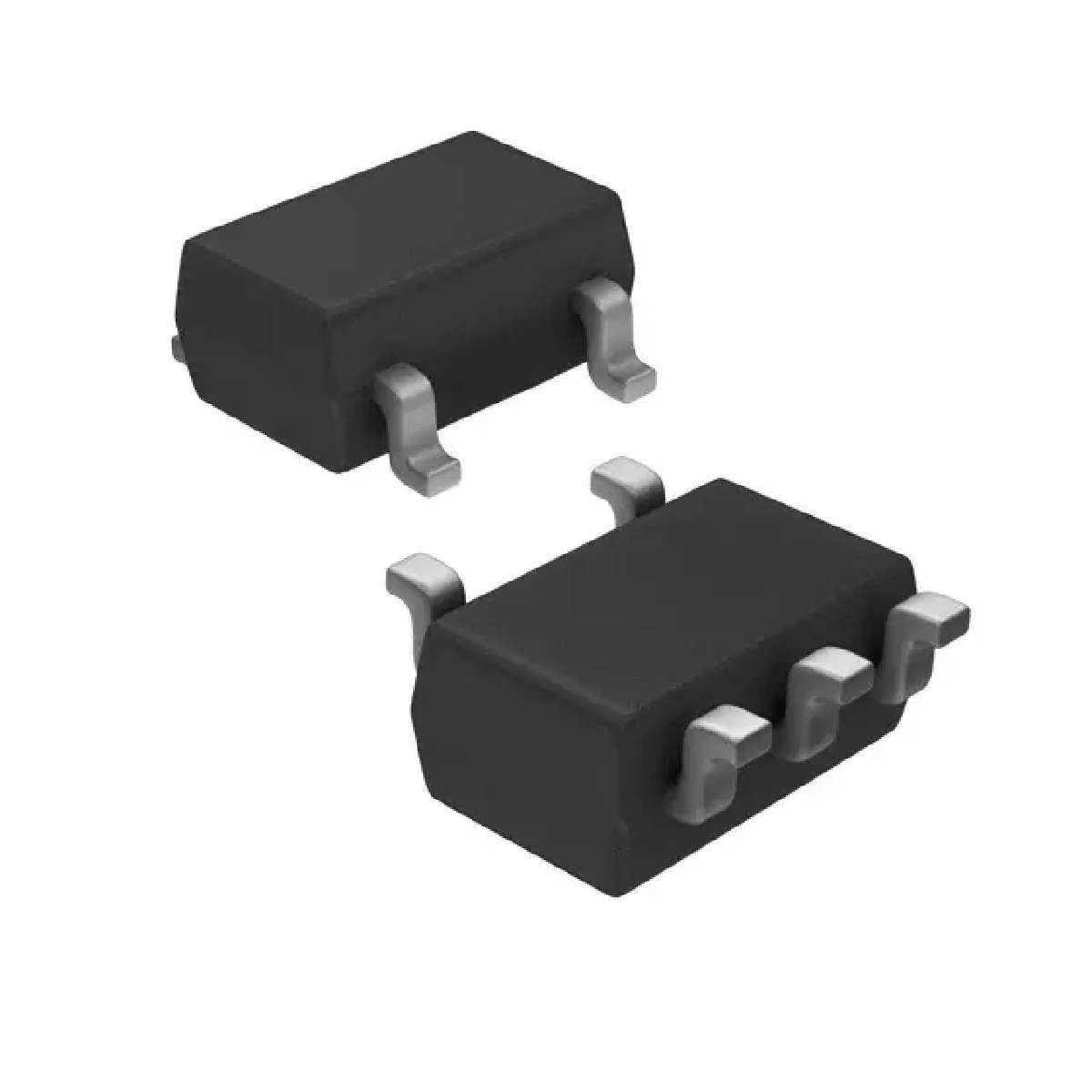

| TC7SH00F,LJ(CT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
IC GATE NAND 1CH 2-INP SMV
|
||
| 标准包装：1 | ||
| 数据手册： -- | ||
| ECAD模型:
|
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Supply | 2 V ~ 5.5 V |
|---|---|
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Logic Type | NAND Gate |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Series | TC7SH |
| Current - Output High, Low | 8mA, 8mA |
| Mounting Type | Surface Mount |
| Current - Quiescent (Max) | 2µA |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SMV |
| Standard Package | 1 |
| Packaging | Digi-Reel® |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Family | Logic - Gates and Inverters |
| Operating Temperature | -40°C ~ 85°C |
